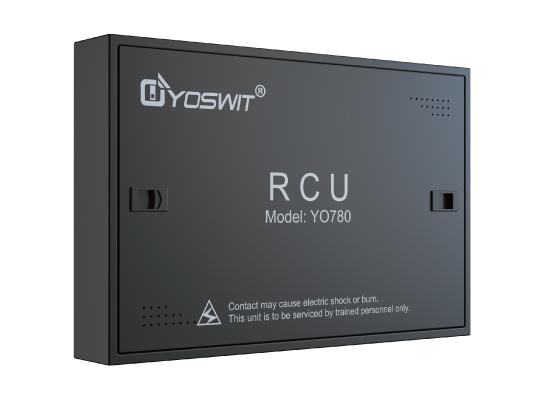

RCU / 780
Product Code: YO780
Features:
- Connectivity with Third-Party Systems
- Integration with Hotel Management Systems for Central Control
- Wired and Wireless Compatibility
- Energy Efficiency and Cost Savings
- Conjunction with Different Modules, Enables Control over Various Aspects
Product Variant:
Template
Features

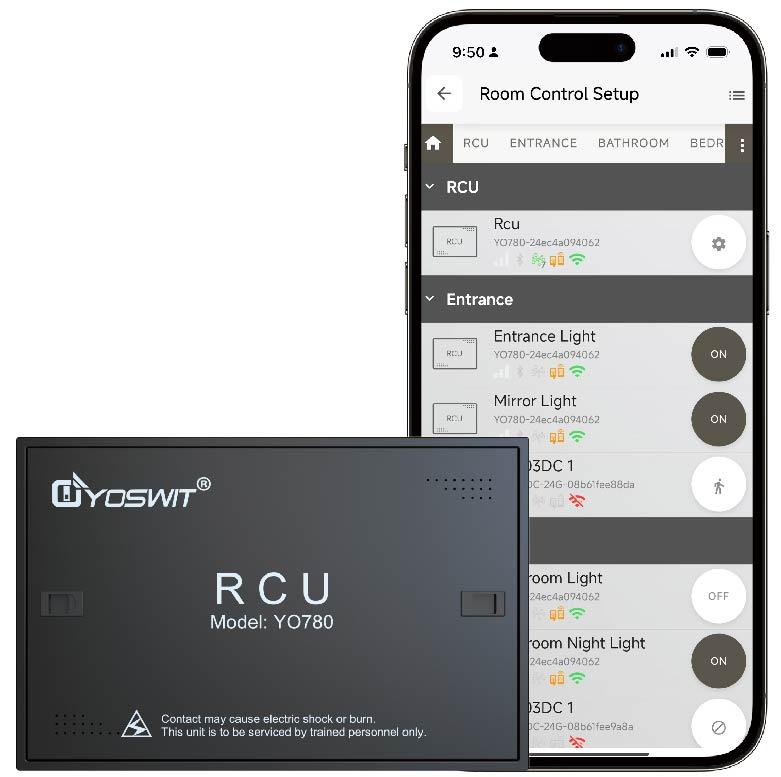

Run Your Home from Your Phone
Mobile As Hub
Voice Control
Mesh-like Network
Remote Control
Room and Scenes
Away Detection
Schedule Timers
Password Protection
IFTTT
Bluetooth Version
We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.
Compatible Devices
We support all Smart Ready products with our application installed. Please Click Here to get the growing list.
IOS Support
We support iOS 13.0 or later.
Android Support
We support Android 7 or later.
| General | ||
| Product Name |
RCU / 780
|
|
| Model |
YO780-4G-4G-2GV-2GD-2GD (R2W)
|
|
| Revision |
V1.0
|
|
| Compliance |
CE, FCC, RoHS
|
|
| Manufacturer |
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
|
|
| Product Size |
|
|
| Switch Module Specification | ||
| Light Switch Module |
|
|
| Model |
YO780-4G
|
|
| Operation Power |
DC12V±10%
|
|
| Power Consumption |
≤2W
|
|
| Output Channels Count |
4
|
|
| Output Mode |
AC Live Output (Output Voltage Follows Input Voltage)
|
|
| Max Switching Current |
Total Output 6A , Per Channel 6A
|
|
| Size |
135mm x 60mm x 1.6mm
|
|
| 0-10V Dimmer Module |
|
|
| Model |
YO780-2GV
|
|
| Operation Power |
DC12V±10%
|
|
| Power Consumption |
≤2W
|
|
| Output Channels Count |
2
|
|
| Output Mode |
Adjustable DC Voltage Output, AC Live Output (Output Voltage Follows Input Voltage)
|
|
| Max Switching Current |
Total Output 6A , Per Channel 6A
|
|
| Size |
135mm x 60mm x 1.6mm
|
|
| TRAIC Dimmer Module |
|
|
| Model |
YO780-2GD
|
|
| Operation Power |
DC12V±10%
|
|
| Power Consumption |
≤2W
|
|
| Output Channels Count |
2
|
|
| Output Mode |
AC Live Output (Output Voltage Follows Input Voltage)
|
|
| Max Switching Current |
Total Output 2A , Per Channel 1A
|
|
| Size |
135mm x 60mm x 1.6mm
|
|
| Mechanical | ||
| Operating Temperature |
20°C to 85°C
|
|
| Operating Humidity |
0-95% RH, Non-Condensing
|
|
| Operation |
APP, Input Unit
|
|
| Ingress Protection (IP) |
20
|
|
| Electrical | ||
| Operation Power |
100-240V AC (50/60Hz)
|
|
| Power Consumption |
≤3W
|
|
| Wireless | ||
| Frequency |
2.4GHz
|
|
| Connection |
Wifi 2.4G / BLE 5.0
|
|
| Range |
Open Area: >50m / Interior: 3-20m
|
|
| Package | ||
| What's in the Box |
|
|
WARNING !
Disconnect Power
To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.
Basic Installation
Installation complete.
Download the Yoswit App to your smart device and enjoy it now!
Yoswit will automatically detect the switch and add to your device list.
